Name: Karl L (3.6x7.6m | 23.1m2) Flat Roof Timber Carport for One Car
Brand: Palmako
SKU: 101025
Price: 2790.0 GBP
Availability: InStock

5 Year Warranty
Internal area: 23.1sqm
Total height: 232.0 cm
External dimensions: 360x762 cm
Walls: 120x120mm (Posts)
Glazing:

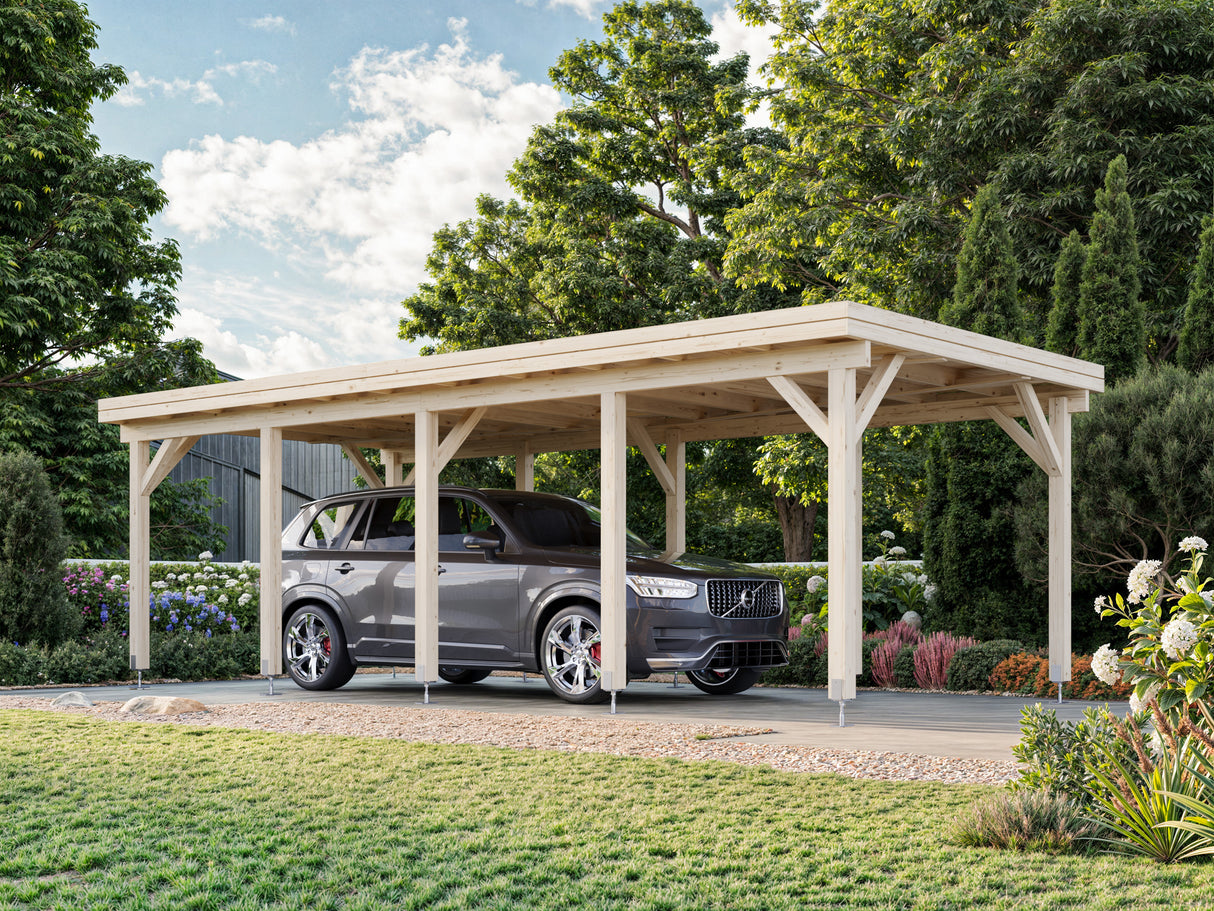

Karl L (3.6x7.6m | 23.1m²) Flat Roof Timber Carport for One Car

Overview

The Karl L is a sleek, modern flat roof timber carport designed to provide robust protection for your vehicle throughout the year. Its substantial size and durable construction make it an excellent alternative or complement to a traditional garage, with additional space for storage if needed.

Design and Materials

Constructed from high-quality laminated timber, the Karl L carport features strong 120x120 mm posts that ensure stability and long-term durability. The flat roof is made from 19 mm thick tongue-and-groove boards, providing solid coverage and resistance against weather elements. The use of laminated timber not only enhances the structural integrity but also gives the carport a smooth, fine surface that minimizes the risk of splinters.

Features and Specifications

Construction: Robust laminated timber posts for enhanced stability and aesthetic appeal.
Roofing: Flat roof constructed from 19 mm solid timber boards, designed to withstand heavy loads and severe weather conditions.
Dimensions: Offers a generous internal area of 23.1 m², with external dimensions of 360x762 cm, ample space for parking one car and additional storage.
Additional Storage: Space at the back of the carport allows for the addition of a storage shed for tools, garden furniture, tires, and more.

Installation and Customization

The Karl L carport is engineered for easy self-assembly, with all necessary mounting brackets included. Optional extras such as ground anchors, roofing felt, or EPDM rubber roofing can be added to enhance weather protection and durability. These options help ensure the carport remains secure and well-protected against environmental factors. For a hassle-free experience, we offer installation service for all of our cabins.

Usage and Flexibility

This carport is ideal for shielding your car from snow, rain, and sun, reducing the inconvenience of weather-related issues like snow scraping in winter or overheated interiors in summer. The design includes additional space that can be utilized to store various outdoor equipment or seasonal items, effectively maximizing the usability of your outdoor area.

Practical Benefits

Weather Protection: Protects vehicles from environmental elements and provides a cooler shaded area during hot summer days.
Durability: Laminated timber construction reduces potential warping, swelling, or other moisture-related issues, ensuring the carport remains in excellent condition for years.
Additional Features: Optional enhancements like ground anchors for stability and different roofing materials for increased protection.

Conclusion

The Karl L flat roof timber carport is a stylish, functional, and durable solution for vehicle protection and storage. With its simple yet modern design, it offers an effective shelter for your car, while the optional additions allow for further customization to suit your specific needs and preferences. Whether used alone or with the optional storage extension, this carport is a valuable addition to any property, blending seamlessly with contemporary outdoor aesthetics.

Technical details

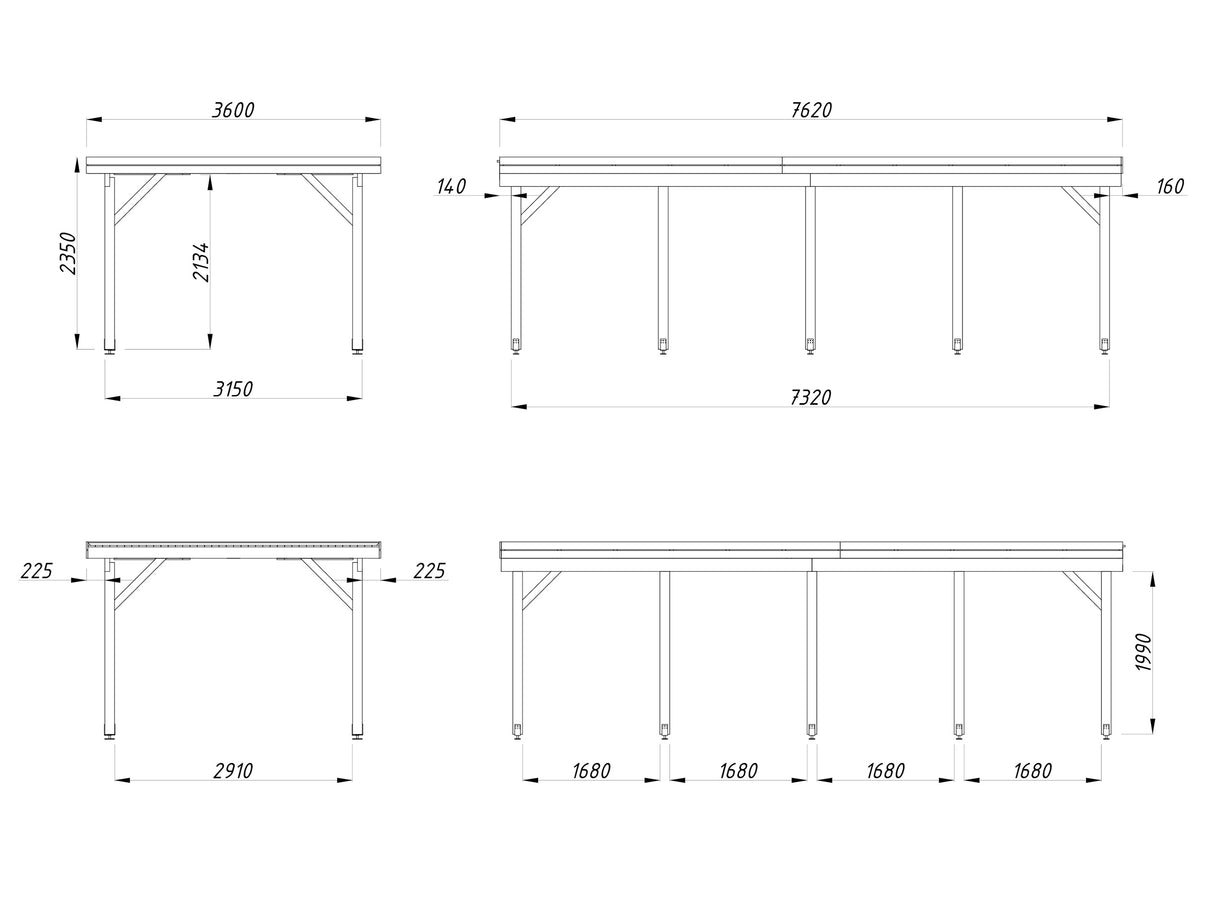

Measurements

Dimensions: 360x762 cm
Overall height: 232.0 cm
Wall height: 215.0 cm

Walls:

Construction type: Post and beam
Wall thickness: 120x120

Roof:

Roof type: Flat roof
Roof area: 27.4 m²
Roof angle: 1.1º
Overhang, front: 0.0 cm
Overhang, back: 0.0 cm
Overhang, sides: 0.0 cm
Roof board thickness: 19.0 mm

Floor:

Floor area: 23.1 m²
Floor board thickness: mm
Floor beams: mm

Doors and windows:

Glass type:
Nr of windows:
Nr of double windows:
Window sizes: cm
Nr of single doors:
Nr of double doors:
Nr of sliding doors:
Door size: cm

Delivery and packaging

Nr of packages: 1
Total weight: 824.91kg

Assembly instructions

Please read the assembly manual carefully before proceeding with the house installation! You will thus avoid problems and will not waste time.

→ Download the installation manual from here ←

Recommendations

Keep the house package until its complete assembly in a dry place, but not in direct contact with the ground, protected from weather conditions (moisture, the sun, etc.). Do not keep the house package in a heated room!
When selecting the garden house location, make sure that the house will not be subjected to extreme weather conditions (areas of strong snowfall or winds); otherwise you should attach the house (for instance, with anchors) to the subsoil.
All timber elements are natural and need to be treated with wood protection products by the customer to resist weather effects.

For assembling you will need the following tools:

assembly aid
water-level
knife
ladder
screwdriver
measuring tape
hammer
saw
pliers
drill
protective gloves

Preparation of components

Sort the components based on the wall plans (see Installation manual) and place them at the four sides of the house in the installation sequence.

Attention:

Never place the components directly on grass or a muddy surface because it will be very difficult or even impossible to clean them up later!

Garden house installation

Installing a garden house begins from preparing a perfectly level and square foundation. Pouring a concrete foundation is not essential for that purpose; lightweight construction blocks, concrete slabs or posts are also suitable as a base. They need to be dug partly into the ground and levelled before installing the house in order to prevent the house from sinking.

Every house has installation manual included, describing all the main installation stages and separately displaying the wall elements. You can see some of the installation manual by the product description on Palmako’s home page.

Foundation

Prepare the foundation so that its upper edge extends from the ground to a height of at least 5 cm and the foundation joists are propped up on every side with intervals not exceeding 50-60 cm. At the same time make sure that there are sufficient air apertures under the house floor for ventilation.

The following foundation options are recommended:

Screw foundation
Strip or spot (pile) foundation
Foundation from concrete or pavement slabs
Slab foundation (cast concrete bed)

The base frame of the house must be completely flat and level to ensure that the installation proceeds without problems.

Attention:

Different houses can have different foundation placements – see the appended base frame drawing (in Installation Manual)!

Take a look at the assembly videos

Our installation videos are made for illustrative purposes only and show general installation principles of a product group.

During installation you must always follow the product specific installation instructions that come with the product!

Treatment and care

Wood is a natural material, growing and adapting depending on weather conditions. Large and small cracks, colour tone differences and changes, as well as a changing structure of wood are not errors, but a result of wood growing and a peculiarity of wood as a natural material.

Unprocessed wood (except for foundation joists) becomes greyish after having been left untouched for a while, can turn blue and become mouldy. To protect the wooden details of your product, you must immediately process them with a wood preservative or use the product treatment service that Palmako gladly offers.

It is recommended that you cover the floor boards in advance with a colourless wood impregnation agent, especially the bottom sides of the boards, to which you will no longer have access when the house is assembled. Only this will prevent moisture penetration.

It is also recommended that you process the doors and windows as well with a wood impregnation agent, and do that namely both inside and outside! Otherwise the doors and windows can become twisted.

After the product assembly is completed, a weather protection paint that will protect wood from moisture and UV radiation is recommended for the conclusive finishing.

When painting, use high quality tools and paints, follow the paint application manual and manufacturer’s safety and usage instructions. Never paint a surface in strong sunlight or rainy weather. Consult a specialist regarding paints suitable for unprocessed softwood and follow the paint manufacturer’s instructions.

Having been properly painted, your product’s lifetime will increase substantially. Palmako recommends that you inspect the house thoroughly once every six months.

Warranty

Sales and Warranty Terms and Conditions

Over the last 20 years, Palmako has produced over half a million wooden houses. In Palmako’s production, only the latest technology is used to make no compromises on quality and to make sure that nature and its resources are handled in the best possible way.

Palmako places a 5-year warranty on Palmako’s wooden buildings and a 2-year warranty on Palmako’s playgrounds and swings for your complete peace of mind.

Palmako products are manufactured in accordance with high-quality norms. Parts have been carefully inspected and packed. In order to avoid possible problems, it is recommended that you inspect the delivery for its completeness in accordance with the list of parts before assembly. This inspection must be carried out within 14 days after delivery. Warranty claims are limited to the exchange of defective parts. Defective parts, which have been used or treated, are excluded from being replaced. All further claims are excluded! In the case of complaints, please pay attention to the following procedures: please present the inspection certificate along with the sales receipt to your place of purchase. Only in cases where these documents are presented will the complaint be dealt with quickly and without complications.

Please be sure to keep the packaging and accompanying documents of the product!

Keep the product and packaging in a dry place, but not in direct contact with the ground, protected from weather conditions. To protect the wooden products, you must immediately treat them with a wood preservative and provide regular maintenance.

There may be errors and technical differences in the data and files displayed on this website.

During installation you must always follow the product specific installation instructions that come with the product!

Warranty events

design defects;
missing components;
the use of materials not in compliance with the applicable quality requirements as well as all other defects in the product that would result in the lack of conformity of the product with the contract.

The warranty does not cover

peculiarities of wood as a natural material;
wooden details already painted (processed with a wood preservative);
wooden details containing whole branches that do not endanger the stability of the product;
colour tone variations caused by wood structure differences that do not influence wood lifetime;
wooden details containing (caused by drying) small cracks/gaps that do not pass through and do not influence the structure of the product;
twisted wooden details if they can nevertheless be installed;
roof and floor boards that may have on their concealed surfaces some non-planed areas, colour differences and waning;
complaints resulting from an incompetent manner of installation of the product;
defects of the product caused by the wrongful handling or use of the product, its components or materials or the failure to comply with the requirements for storage and maintenance of the product by the buyer;
complaints caused by introducing self-initiative changes to the product;
defects of the product caused by humans, animals or forces of nature, natural disasters or other events having catastrophic consequences:

The complaints covered by the warranty are satisfied to the extent of replacing the deficient/faulty material. All other demands will be excluded!

Assembly video

*This is an illustration on how this type of products are assembled. Please refer to user manual for detailed assembly instructions.

Download installation manual
